Botanical Gardens Architectural Stainless Steel Balustrades
A large-scale architectural balustrade installation designed to complement the natural surroundings while delivering durability and safety along Brisbane’s riverside.
Project Overview
Category: Balustrades, Commercial
Location: Botanical Gardens, Brisbane River

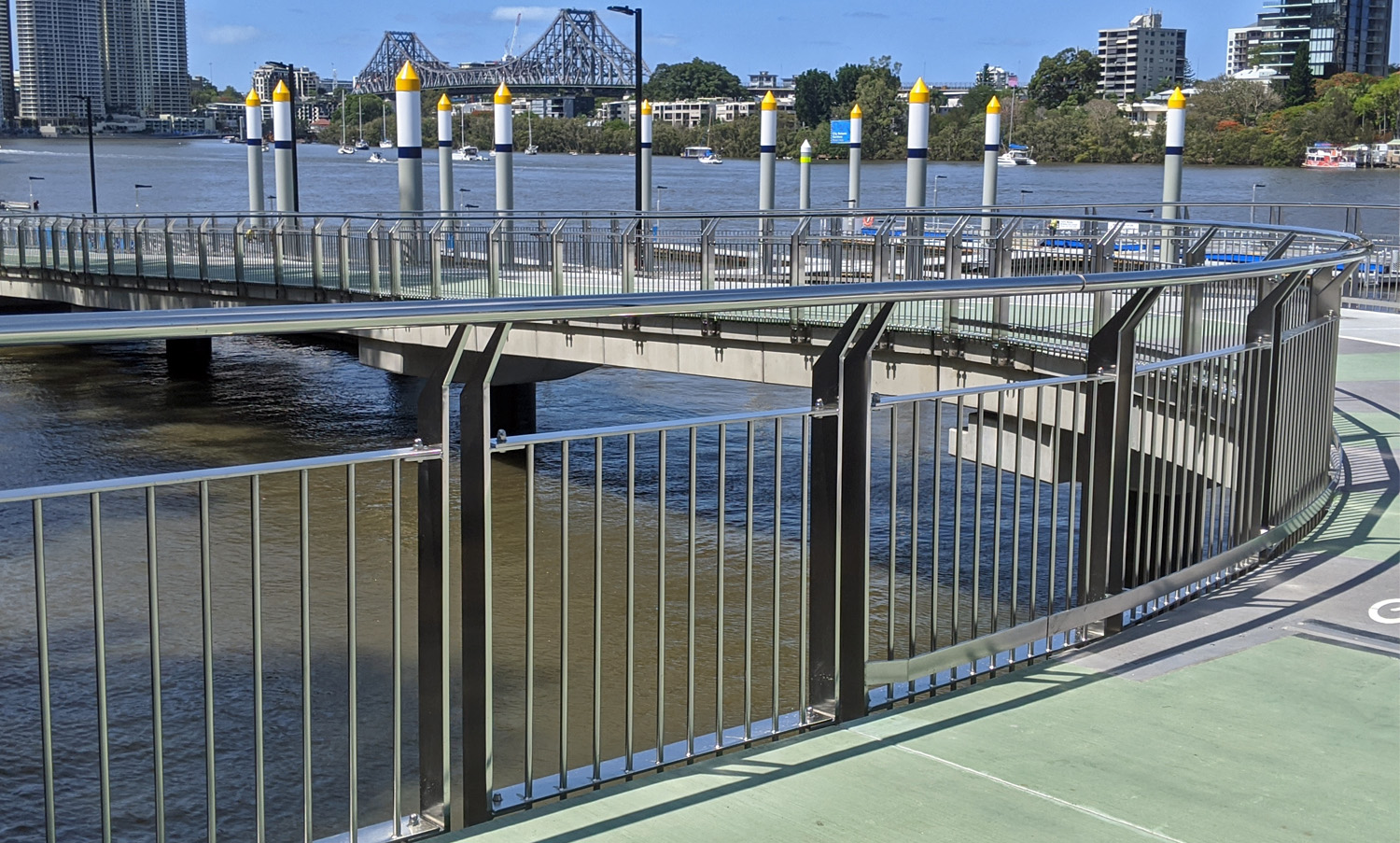

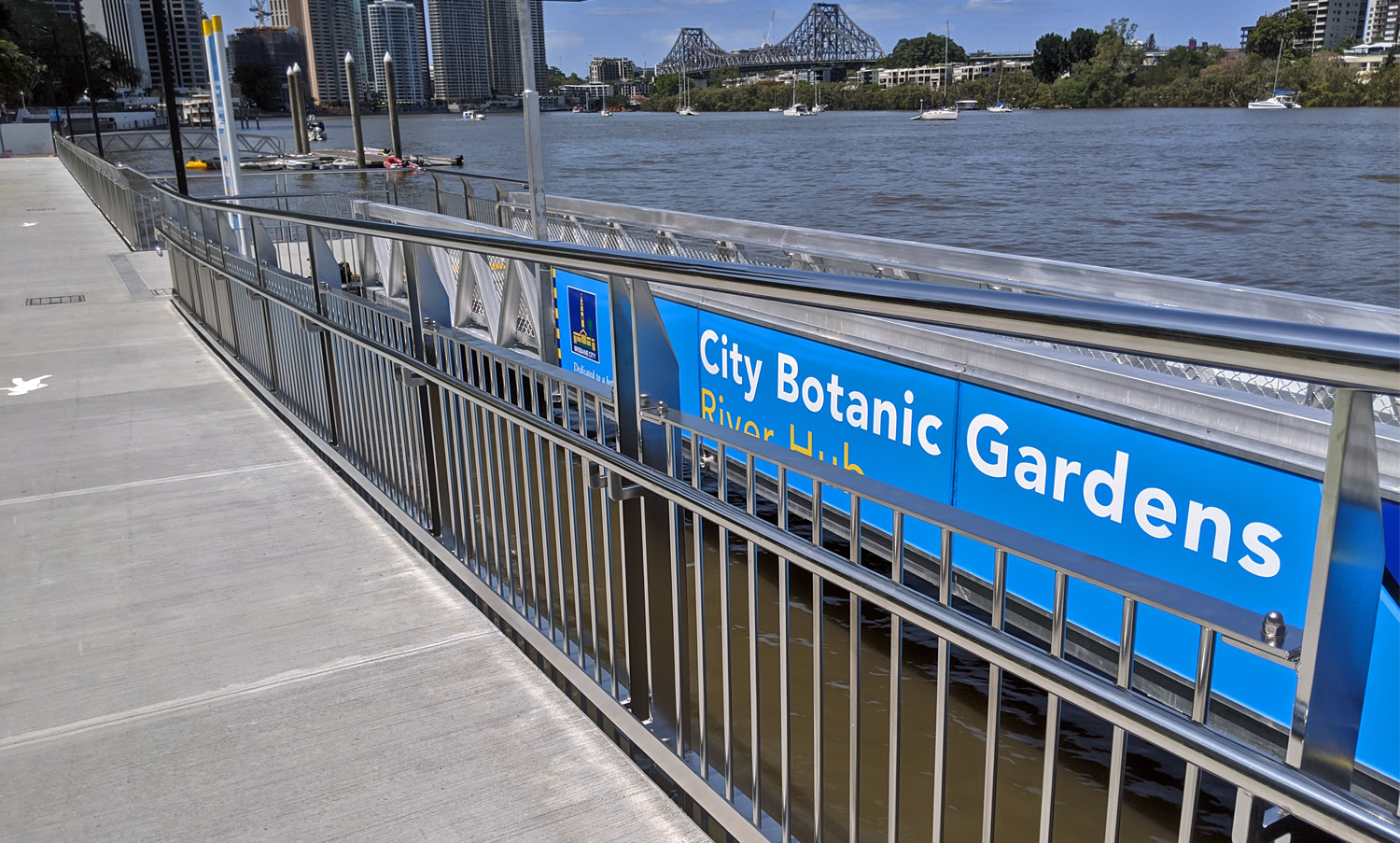

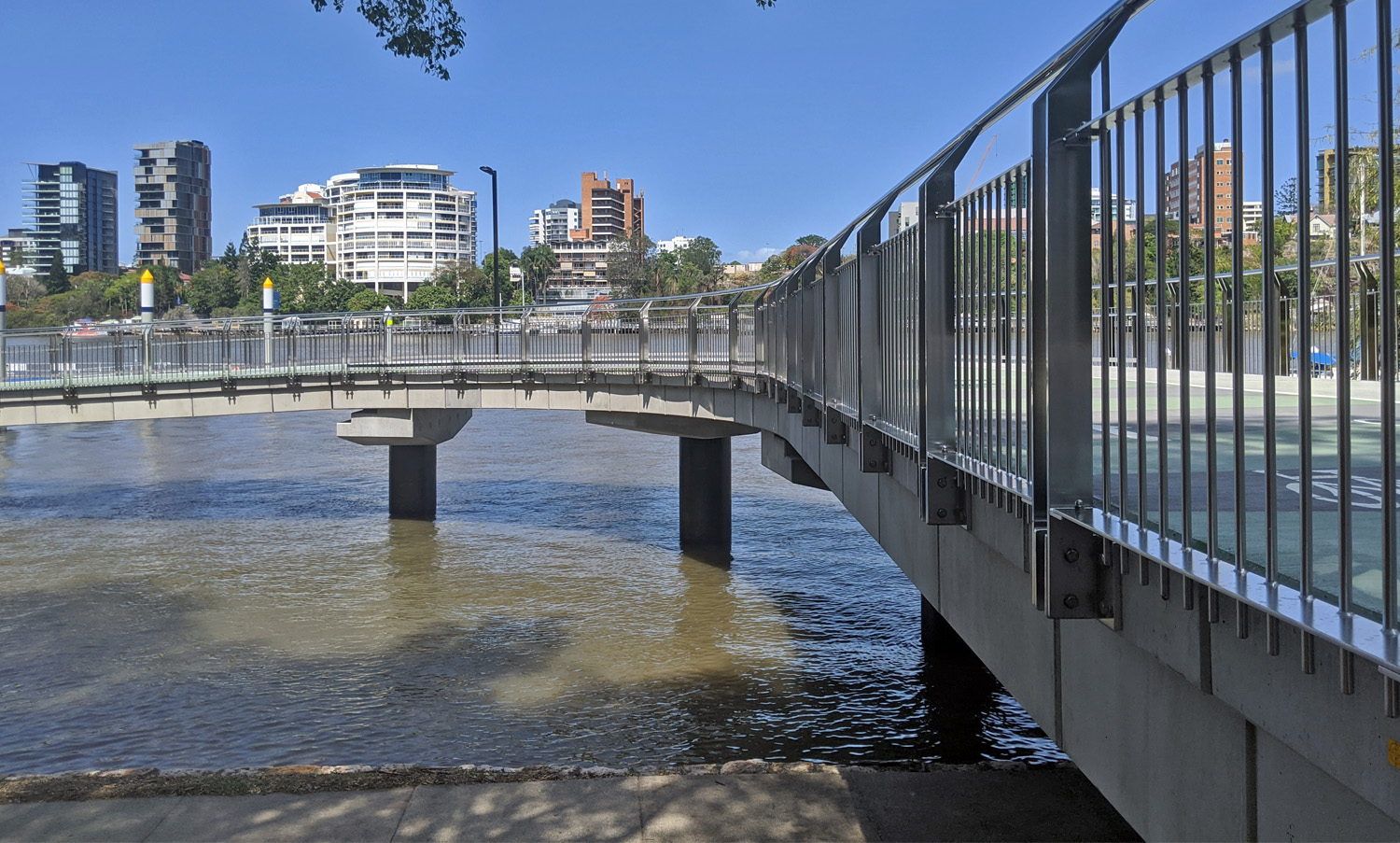

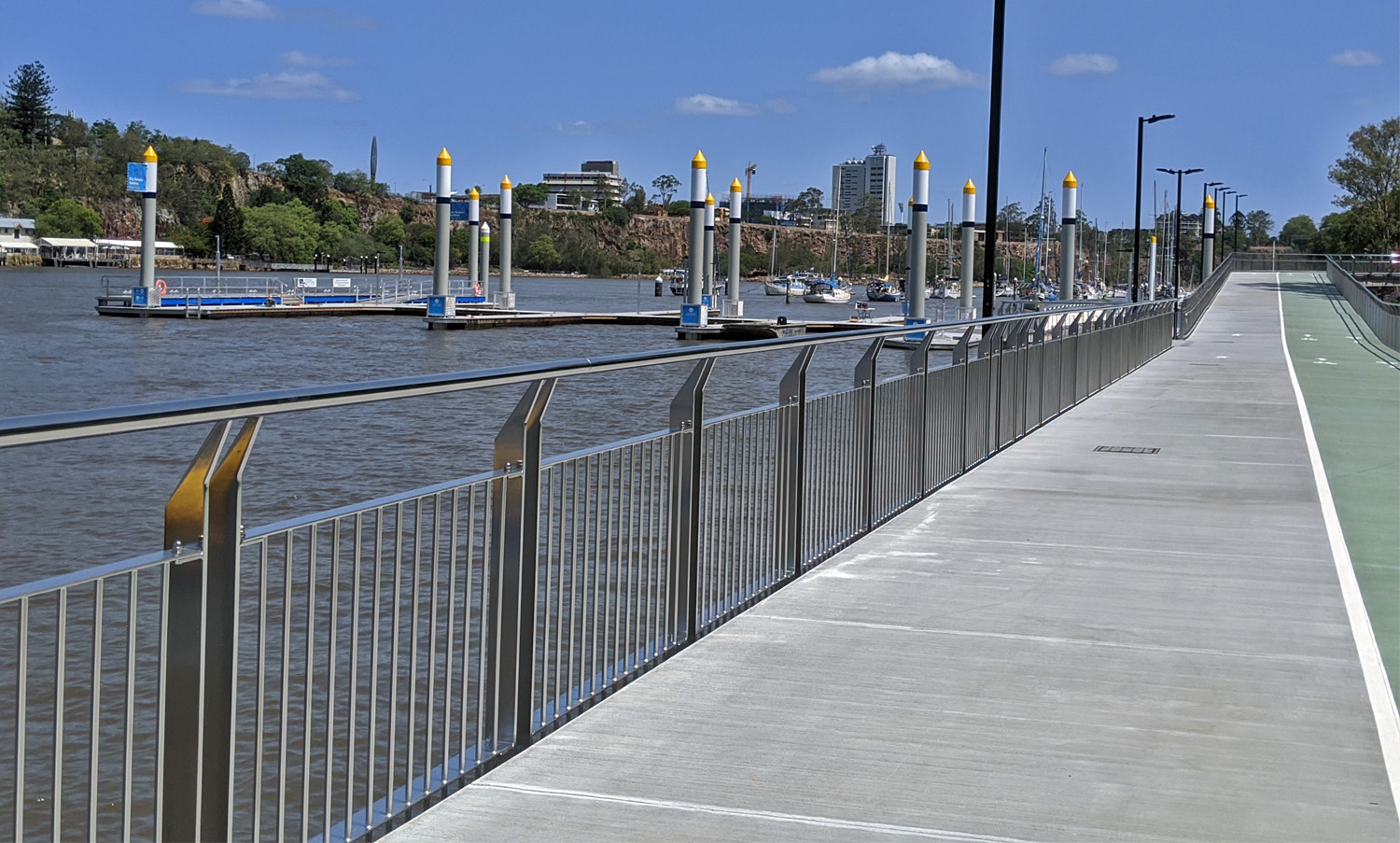

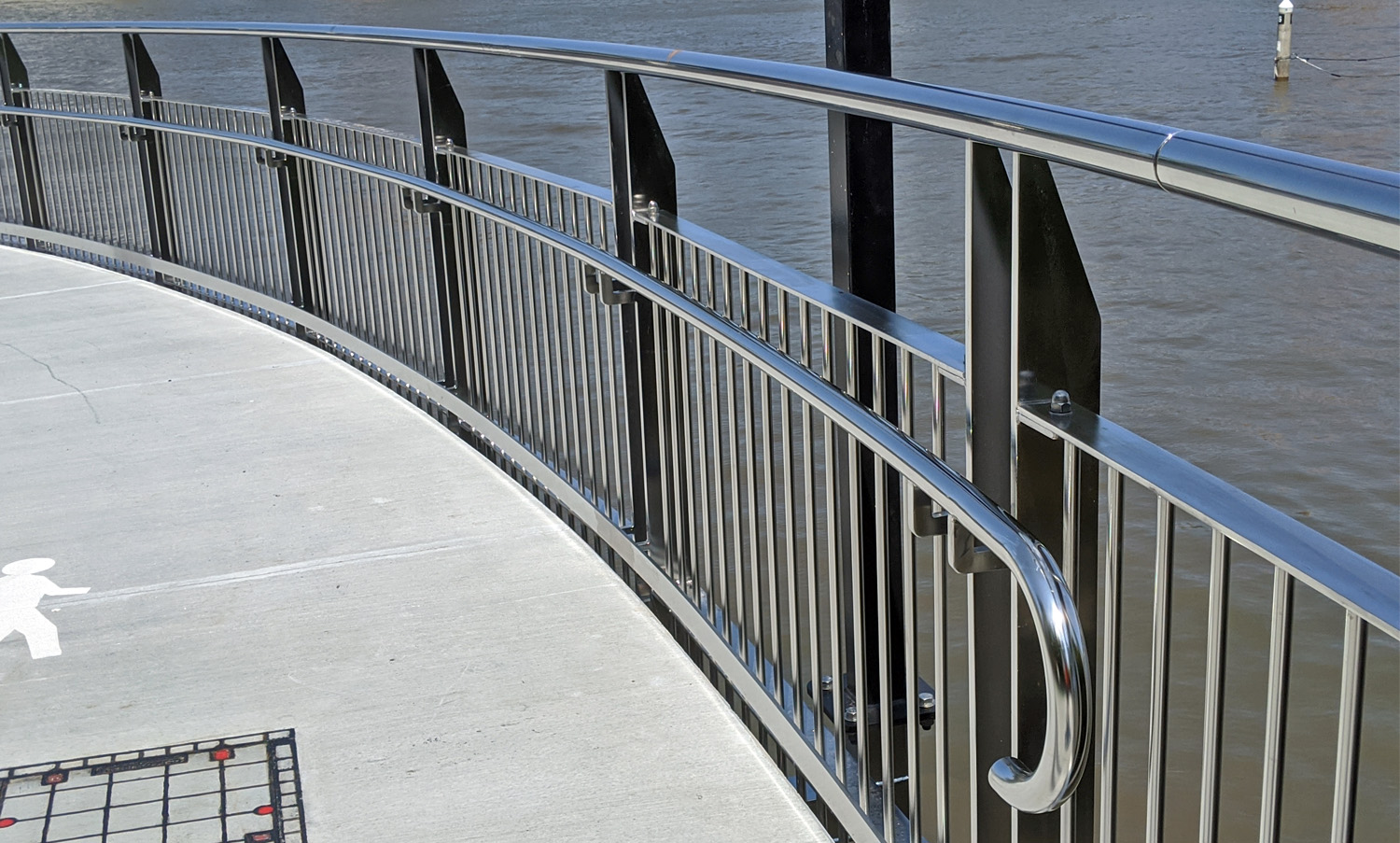

Project Description: Southern Stainless was engaged to fabricate, supply, and install a modular stainless steel balustrade system for the Brisbane City Botanic Gardens.
Spanning approximately 350 metres of balustrade, the project required a balance of structural performance and visual integration within a high-profile public landscape. The architectural design focused on clean lines and durability, ensuring the balustrade enhanced the surrounding environment while meeting safety requirements for both pedestrians and cyclists.
All components were manufactured from high quality stainless steel, mechanically polished to a 600 grit finish and electropolished after fabrication to maximise corrosion resistance in the riverside setting.
Our Role
- Fabrication of modular stainless steel balustrade systems
- Supply and installation across the full project length
- Precision polishing and electropolishing for long-term durability
- Integration of both pedestrian and bicycle balustrade sections
- Installation of associated components including light pole brackets
Key Features
- Approx. 350 linear metres of balustrade
- Base plates fabricated from 20mm stainless plate with full penetration butt welds
- 20mm profile-cut stanchion posts
- Infill panels from 75 x 10mm flat bar
- 120 x 10mm flat bar bottom rails
- 20mm round bar balusters
- 63.5mm diameter x 3mm top rail tube
- 50mm diameter x 3mm pedestrian handrail tube
- Integrated bicycle and pedestrian balustrades
- Light pole brackets with 20mm base plates, 10mm top plates, and 10mm gussets
- Mechanically polished to 600 grit and fully electropolished
Applications
This type of balustrade system is ideal for:
- Public parks and landscaped environments
- Riverwalks and waterfront precincts
- Shared pedestrian and cycle pathways
- Commercial and council infrastructure projects
- Architectural feature balustrades
Project Outcome
The completed balustrade system enhances both safety and usability within the Botanic Gardens while maintaining a clean, architectural aesthetic that complements the natural surroundings. The use of durable, low-maintenance materials ensures long-term performance in a high-traffic riverside environment.
